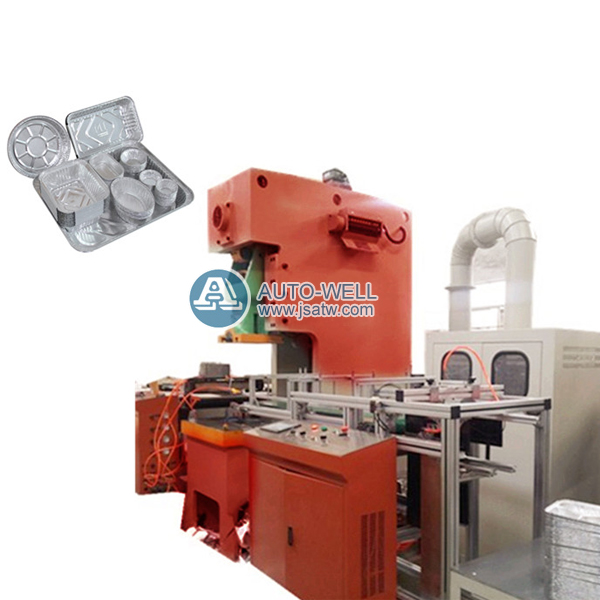

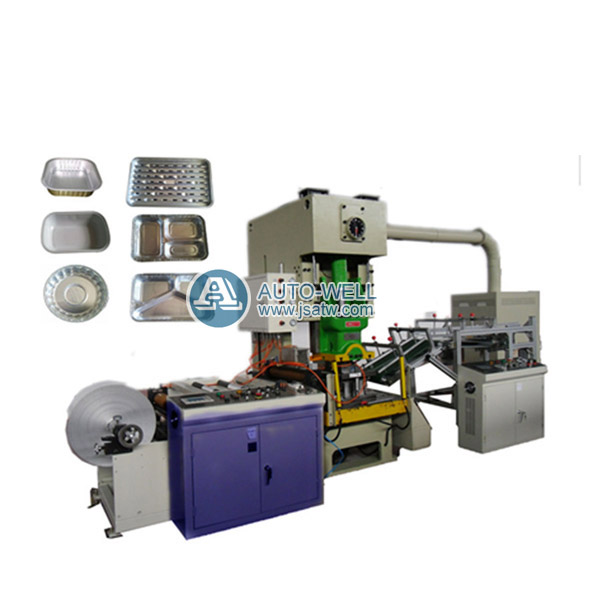

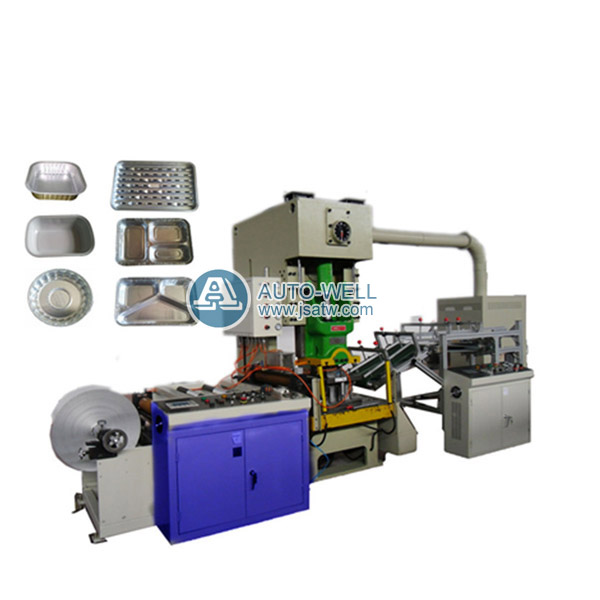

Aluminium foil container machine 04



Components:

1. Auto Feeder (with an auto-lubricator)

2. Siemens Electrical control panel

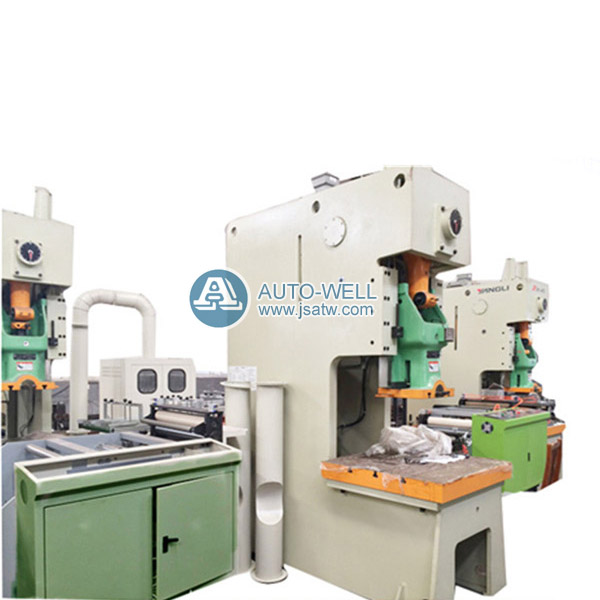

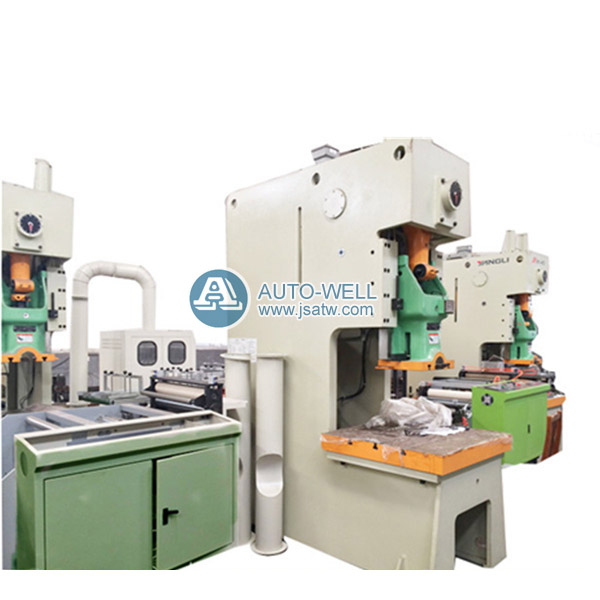

3. 45 ton Yangli brand pneumatic press

4. Mould

5. Collection desk

6.Aoto-conveyor (optional)

7. Auto-stacker (optional)

8. scrap collector (optional)

9. scrap baler (optional)



Specification :
1)Specification of Auto-Lubricator Feeder:
Max. Material Roll Dia.: 650mm
Max. Material Roll Width: 650mm
Feeding Speed: 10-30M/min
Feeding Length: 30-900mm
Feeding Tolerance: +/-0.3mm
Capacity: 1Kw

2)Specification of 45T Pneumatic Punch:
Pressure: 400KN
Hole Size of Collecting Table: 300*300mm
Production Output: 40-80times/min
Board Thickness of Collecting Table: 50mm
Max. Height of Mould: 290mm
Slide Board Size: 220*400mm





CHARACTER:

This machine widely used for manufacturing aluminum foil food container .

- Speed can be adjusted.

-Complete with PLC Control Panel Board



Max. Material Roll Dia.: ￠650mm

Max. Material Roll Width: 650mm

Feeding Speed:10-30M/min

Feeding Length: 30-900mm

Feeding Tolerance: +/-0.3mm

Capacity: 1Kw



2)Specification of 45T Pneumatic Punch:

Pressure: 400KN

Hole Size of Collecting Table: 300*300mm

Production Output: 40-80times/min

Board Thickness of Collecting Table: 50mm

Max. Height of Mould: 290mm

Slide Board Size: 220*400mm



3)Aluminum foil container mould: it uses flexible pneumatic resilience device; long mold service life, stable and reliable quality, high precision, reasonable design and precision processing technology.
