Semi-automatic aluminium foil rewinder

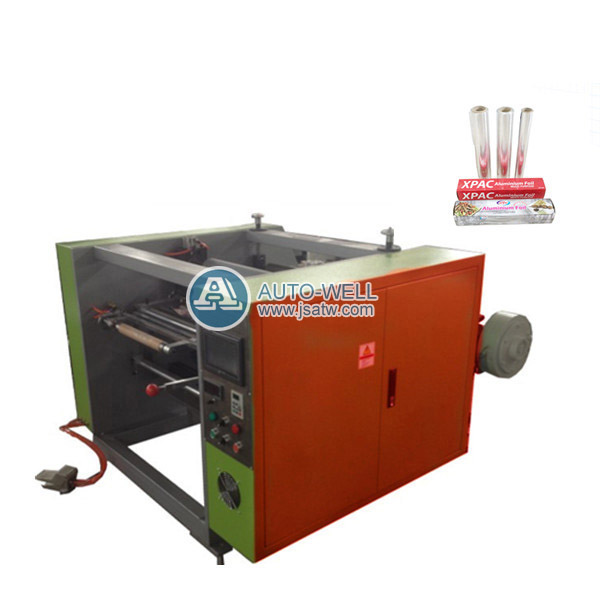

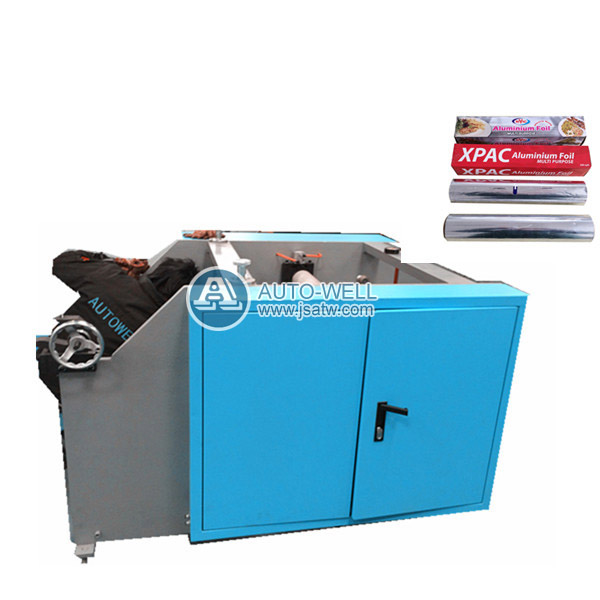

ATW-SD500 Semi-automatic aluminum foil rewinder



Specification :

Material thickness: 0.009-0.02mm

Maximum Unwinding Width: 500mm

Maximum Unwinding Diameter: 600mm

Rewinding Width: 100-500mm

Mother Core Diameter: 76mm/152mm (option)

Finished Product Core Diameter: 25mm/30mm/35mm (option)

Length of production: 30m-400m

Production Speed : 0-300m/min

Power of Motor: 2.2 kw

Machine Weight: 1200 kg

Machine Dimension (LxWxH): 1100x1350x1500mm



CHARACTER:
This machine widely used for manufacturing household aluminum foil roll.
- Speed can be adjusted.
-Complete with PLC Control Panel Board
Main technical parameters:

SPECIFICATION:

Material thickness	0.0085mm-0.025mm
Max. Unwinding Width	500mm
Max. Unwinding Diameter	600mm
Mother Core Diameter	76mm/152mm(可选)
Max. Slitting Width	500mm
Product Core Diameter	25mm/30mm/35mm(可选配)
Producing Speed	4.5m/s
Length of product	50m-600m
