Automatic aluminium foil rewinder

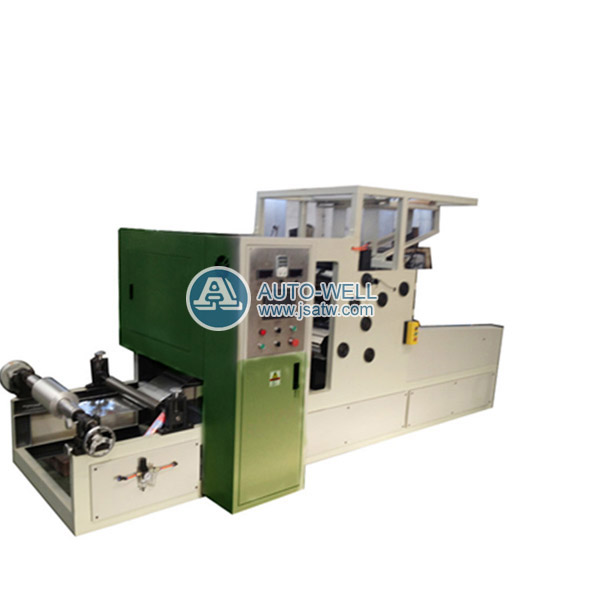

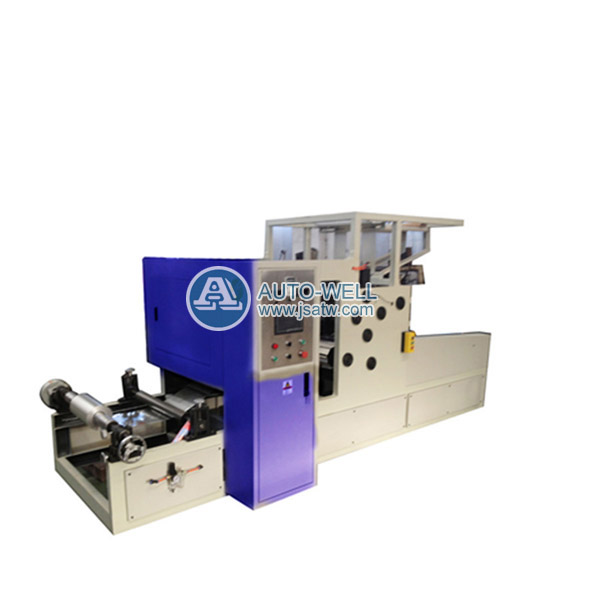

ATW-AF500 Automatic aluminium foil rewinder



Components:

1. Auto Feeder

2. UV sterilization light

3 Auto paper tube glueing

4.Auto paper tube uploading

5.final foil roll collecting belt

6.Siemens PLC



Specification :
1.Thickness of raw material:              -0.01mm0.02mm

2.Width of raw material:                  -100-500mm

3.Maximum unwinding diameter:           -600mm

4.Inner diameter of parent roll core:        -75mm

5.Inner diameter of finished product roll core:- 25 ,30 ,35mm

6.Finished roll length:                    -3m--300m

7.Production efficiency based on length of roll.

8.Unloading magnetic powder brake:       -25N.M

9.Winding magnetic powder clutch:        -12N.M

10.Overall dimension:                    -4000*1350*1710mm

11.Rated power of complete machine:      -4KW

12.Compressed air pressure:             -0.5 Mpa

(prepared by the customer)

13.Weight of complete machine:           -1500KG



CHARACTER:
This machine widely used for manufacturing household aluminium foil roll.
- Speed can be adjusted.
-Complete with PLC Control Panel Board

SPECIFICATION:

Material thickness	0.0085mm-0.025mm
Max. Unwinding Width	500mm
Max. Unwinding Diameter	600mm
Mother Core Diameter	76mm/152mm(optional)
Max. Slitting Width	500mm
Product Core Diameter	25mm/30mm/35mm(optional)
Producing Speed	2.5m/s
Length of product	3m-150m
Motor	4KW
Voltage	380V( 3phase)
Frequency	50HZ
Weight	1800KG
LxWxH	3600 x 1400 x 1910mm
Size	12 CBM
